Product Features:
The melting tank capacity is 30KG, and the melting speed is 30KG/HR.
The heating power of the melting tank is 6500W, and it is coated with TFL anti sticking layer inside.
☆ Partition independent control temperature regulation.
☆ PLC temperature control, imported K-type temperature sensor, heating temperature below 220 degrees.
The touch screen is equipped with a PLC glue spraying control program, which can achieve functions such as timed on/off, speed tracking of the assembly line, and photoelectric induction glue dispensing.
The 4X independent reflux valve and manifold seat can achieve uniform supply of glue to four rubber hoses, and the amount of glue can also be independently adjusted.
☆ Equipment configuration includes dual frequency conversion, dual motors, and dual gear pumps.
The gear pump is a dual flow pump, with a single pump flow rate of 12cc/rev. The entire equipment can achieve a maximum adhesive output of 24cc/rev.
Multiple heat dissipation grilles are added to the sheet metal of the device body to ensure uniform heat dissipation and efficient operation of electronic components.

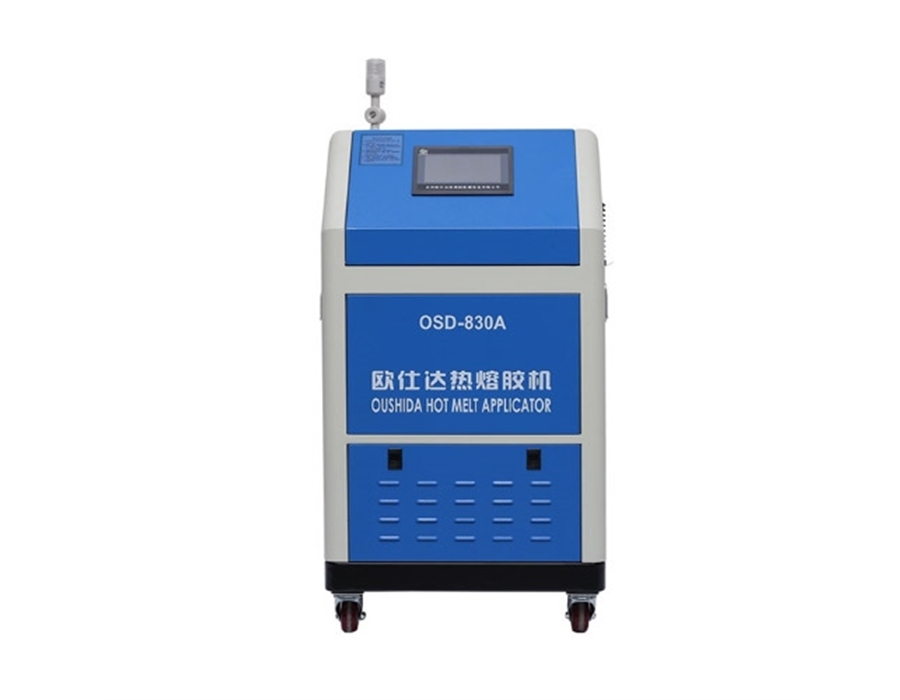

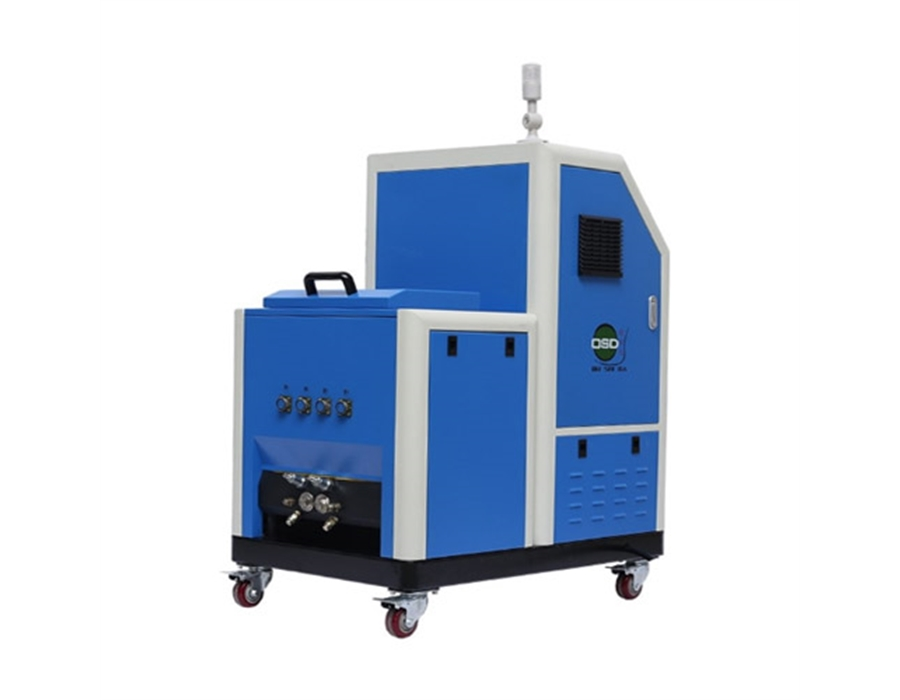

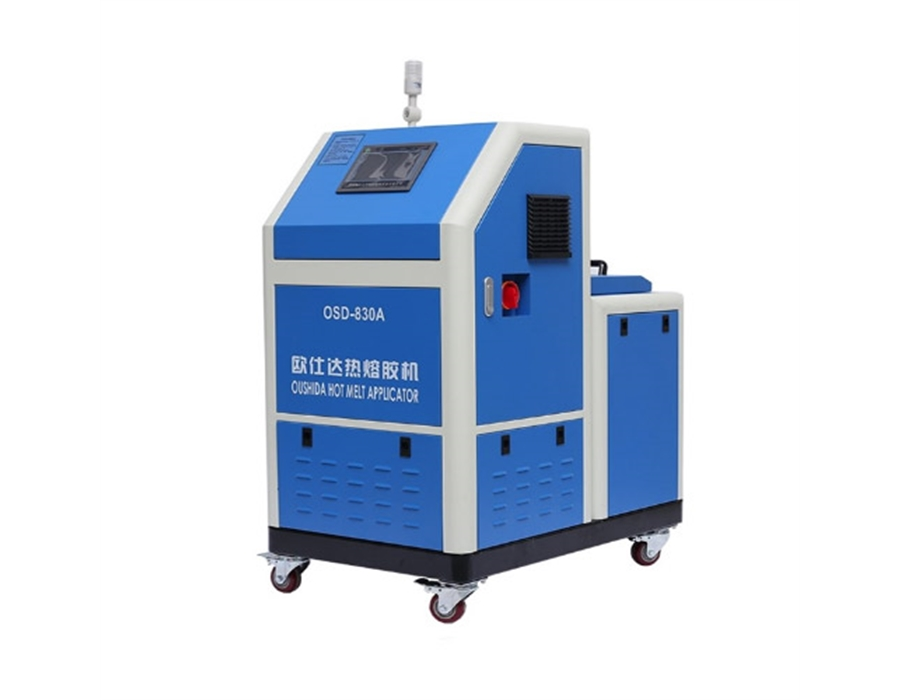

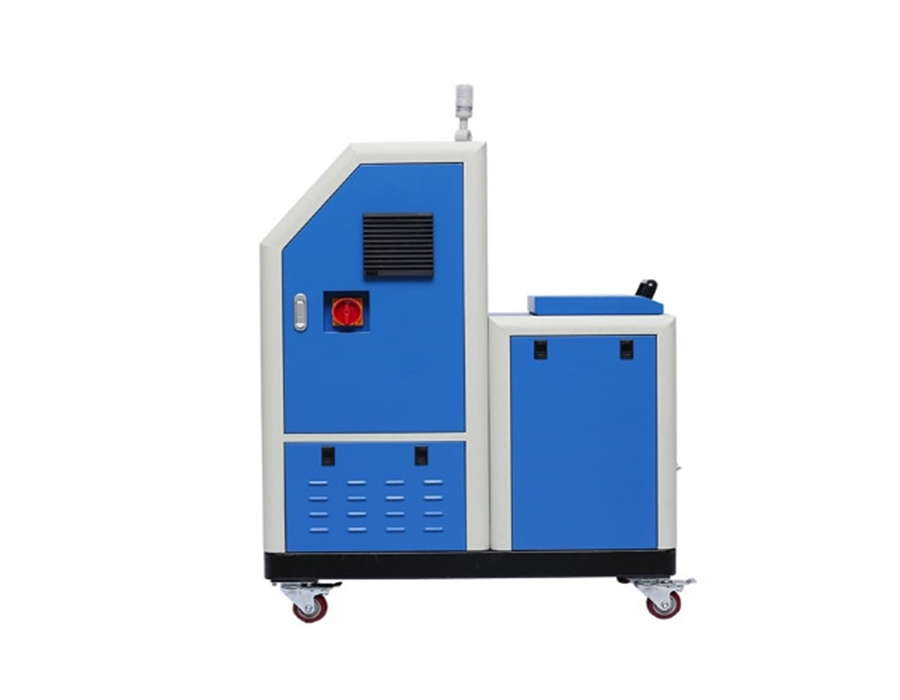

OSD-830A improves the flexibility, reliability, durability, and performance of non-woven fabrics, product assembly, and packaging operations. The dual flow pump enables the Oushida hot melt adhesive machine to easily adapt to applications that require replicated metering flow, in order to achieve viscosity and uniformity of the adhesive strip.
Technical Parameters:
